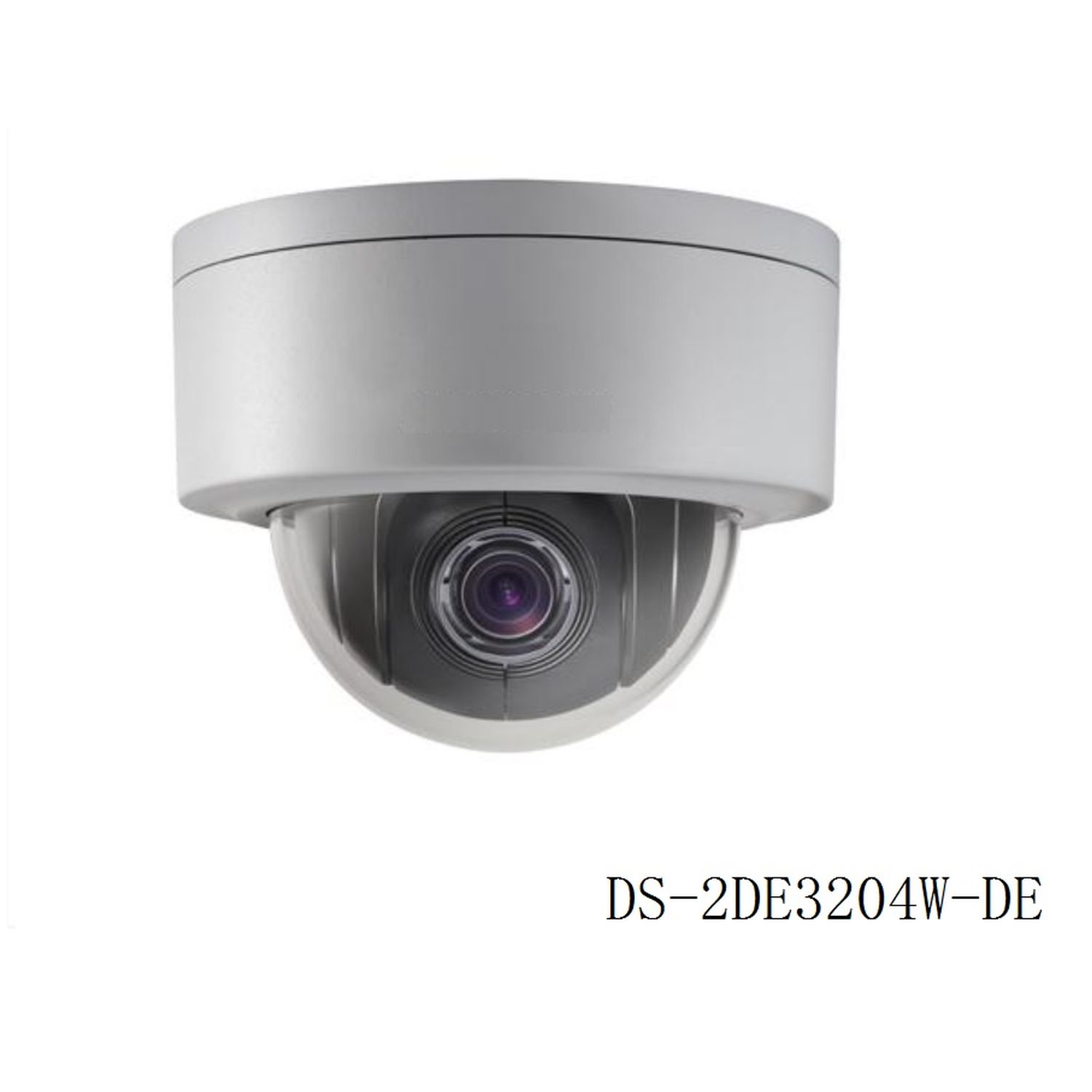

HIKVISION 2MP Utendørs Mini Pan/Tilt WiFi
kr 6 990,00 ink.mva | kr 5 592,00 ex.mva
HIKVISION 2MP Mini PTZ 2.8mm lens 1/2.8″ CMOS 1920×1080 H.264/H.265
Ikke på lokalt lager (Normal leveringstid er 2-4 dager)
Beskrivelse
Camera | ||
---|---|---|
Image Sensor: | | | 1/3″ Progressive Scan CMOS |
Effective Pixels: | | | 1920(H)x1080(V) |
Minimum Illumination: | | | F1.6, AGC On : Color : 0.05 lux, B/W : 0.01 lux |
White Balance: | | | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
AGC: | | | Auto/Manual |
S/N Ratio: | | | ≥ 52dB |
BLC: | | | ON/OFF |
HLC: | | | Support |
WDR: | | | Support |
Shutter Time: | | | 1/1~1/10,000s |
Day& Night: | | | ICR |
Digital Zoom: | | | 16X |
Privacy Masking: | | | 8 privacy masks programmable |
Auto Focus: | | | Auto / Semi-automatic / Manual |
Lens | ||
Focal Length: | | | 2.8~12mm, 4x |
Zoom Speed: | | | Approx.1s(Wide~Tele) |
Angle of View: | | | 105~33.5 degree (Wide~Tele) |
Aperture Range: | | | F1.6 ~F2.7 |
Pan & Tilt | ||
Pan Range: | | | Pan: 0~350° |
Pan Speed: | | | Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s |
Tilt Range: | | | Tilt: 0°~90° |
Tilt Speed: | | | Tilt Manual Speed: 0.1°~50°/s, Tilt Preset Speed: 50°/s |
Proportional Zoom: | | | Rotation speed can be adjusted automatically according to zoom multiples |
Number of Preset: | | | 300 |
Alarm | ||
Alarm Input: | | | 1channels input |
Alarm Output: | | | 1 channels output |
Alarm Actions: | | | Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage |
Input & Output | ||
Audio Input: | | | 1 audio input (Mic/Line in), 2~2.4V[p-p]; output impedance: 1KΩ, ±10% |
Audio Output: | | | 1 Audio output interface Line level, impedance: 600Ω |
Network | ||
Ethernet: | | | 10Base -T, /100Base-TX, RJ45 Connector |
Max.Image Resolution: | | | 1920×1080 |
Main Stream: | | | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) |
Image Compression: | | | H.264 / MJPEG |
Audio Compression: | | | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
Protocols: | | | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP,IGMP, ICMP, DHCP, PPPoE |
No. of Simultaneous Users: | | | Up to 20 users |
Dual Stream: | | | Support |
User/Host Level: | | | Up to 32 users,3 Levels: Administrator, Operator and User |
Security Measures: | | | User authentication (ID and PW), Host authentication (MAC address) IP address filtering |
General | ||
Power Supply: | | | 12V DC or PoE(Power over Ethernet) |
Power Consumption: | | | Max. 8W |
Working Temperature/Humidity: | | | -30°C ~ 65°C (-22°F ~ 149°F) |
Protection Level: | | | IP66 standard (outdoor dome) TVS 4,000V lightning protection, surge protection and voltage transient protection |
Mounting: | | | Various mounting modes optional |
Dimensions: | | | Φ140.7×107.2mm |
Weight (approx.): | | | 950g |
Mount Option: | | | Wall mount: DS-1273ZJ –PT6; In-ceiling Mount: 1227ZJ-PT6; Junction Box: DS-1273ZJ –PT6; Wall Mount: DS-1292ZJ; Wall Mount: DS-1293ZJ |
